| PERFO |

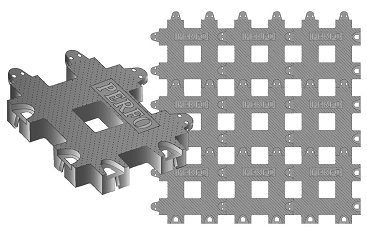

| Interlocking Ground Reinforcement Tiles |
 |
| TECHNICAL SPECIFICATIONS |
|
| Material: |
PE / PP |
|
| Colour: | Black |
|
| Closed surface area (load bearing): |
75% |
|
| Surface texture: |
raised points for grip |
|
| Load bearing capability: |
up to 40 tonnes/mē* |
|
* depending on ground conditions and preparation |
|
| Dimensions (individual tile): |
200 x 200 x 37 mm** |
| |
**not including connecting lugs |
|
| Weight per tile: |
225g |
|
| Mat size: |
A |
B |
|
Dimensions as supplied
(made-up section): |
121 x 81 cm
6 x 4 Perfo tiles |
121 x 121 cm
6 x 6 Perfo tiles |
|
| Weight per made-up section: |
5.5 kg |
8.1 kg |
|
| No. of sections per pallet: |
55 |
55 |
|
| Total surface area per pallet: |
Approx. 54 mē |
Approx. 81 mē |
|
| Weight per pallet: |
Approx. 320 kg |
Approx. 460 kg |
|
| Height per pallet: |
Approx. 220 cm |
Approx. 220 cm |
Resistant to oil, solvents, salt water, most acids.
UV and frost resistant
Does not rot |
 |
 |
Download Technical Specifications |
| PERFO-UK |
A division of Source2Trade Ltd.
Jan 2004 |
